Road Blocker / Wedge Barrier
15/04/2019EL-09-1
22/04/2019
Damper Barrier - Damper System Blocks

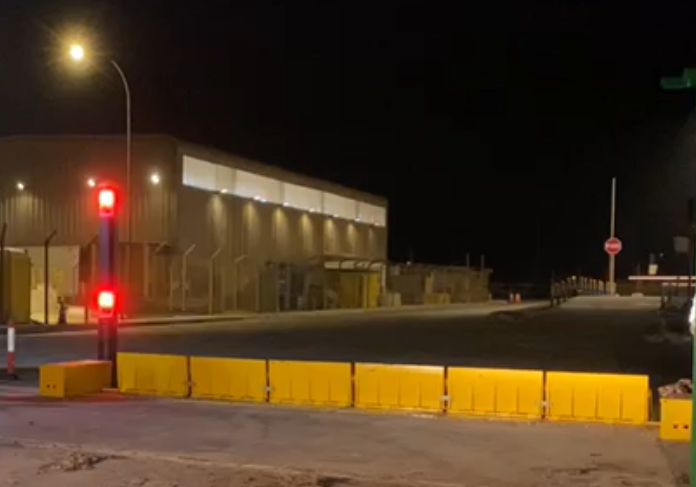

The ELGOTEAM advance damper system blocks unauthorized vehicles from entering controlled passages. The system is specifically designed as an upper surface mount, to be installed in existing compounds such as parking lots, where digging is neither allowed nor possible. The damper system is modular and it can be custom ordered to fit any entrance width.
System is available both in pneumatic and electric version, with a manual override. System rating scored ASTM C50 to stop vehicles of up to 1 ton driving at 80kph.
Download product data sheet
To download the file, please fill in your details:
Damper Barrier - Damper System Blocks
Technical Specifications: Damper Barrier
Product | Damper system |
Height above road | 450mm/ 17" |
Foundation depth | Surface mount |
Speed | 2.5sec/ 3 sec |
Resistance | 1.1on/ 80kph
2425lbs/50mph |
Unit length* | 900mm/ 35" |
Operation | Pneumatic / Electric &Manual |
Operation per hour | 200 |
MCBF | 1.5M |
IP RATE | IP68 can work when completely submereged in water |
Operation temp | -20+60C/-4+140F |
*Also available in 3500mm/ 11.48ft or 2500mm/ 8.2ft | |
*Each control box operates up to 3 units together (total 2700mm/ 8.86ft)
