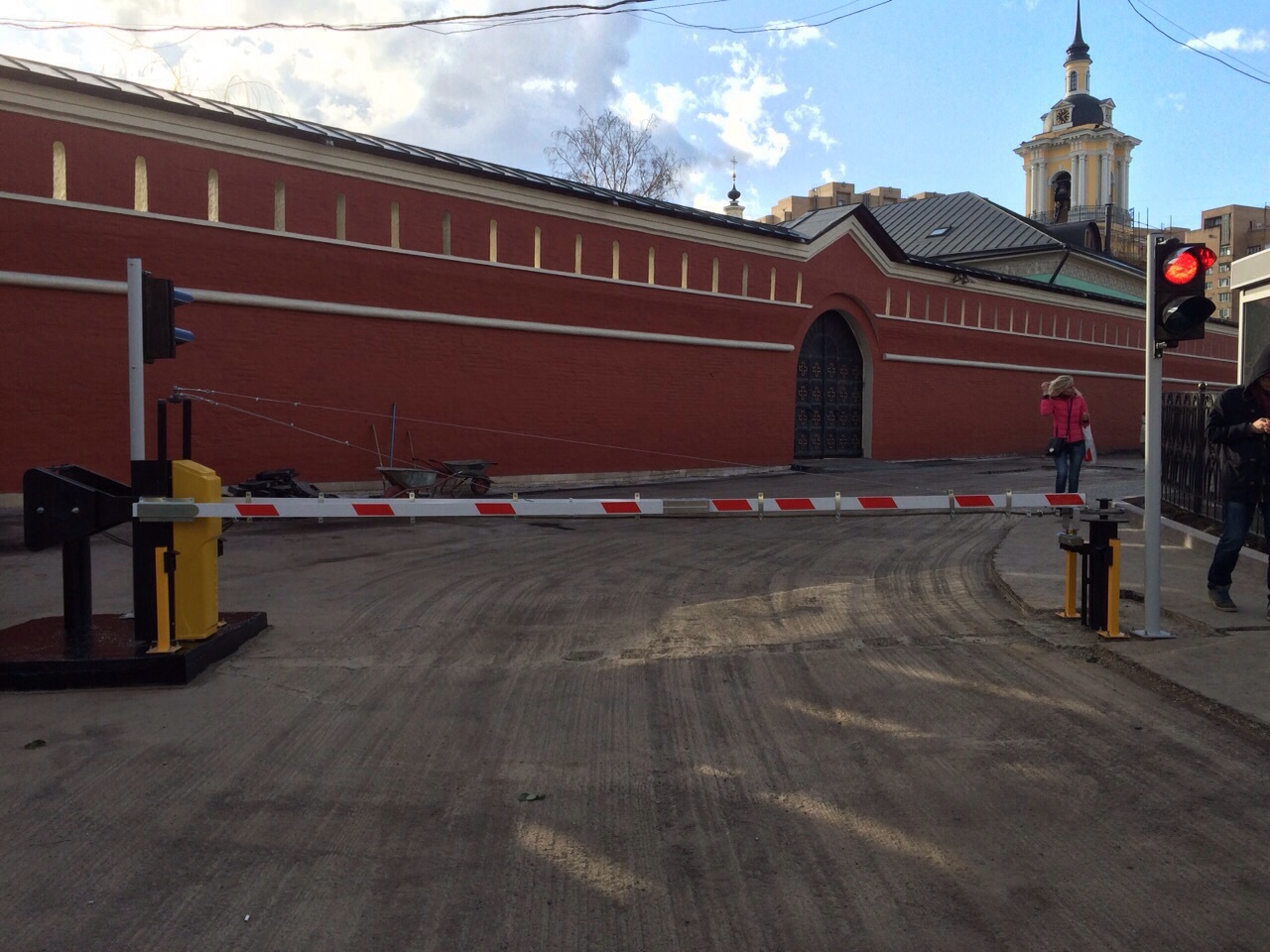

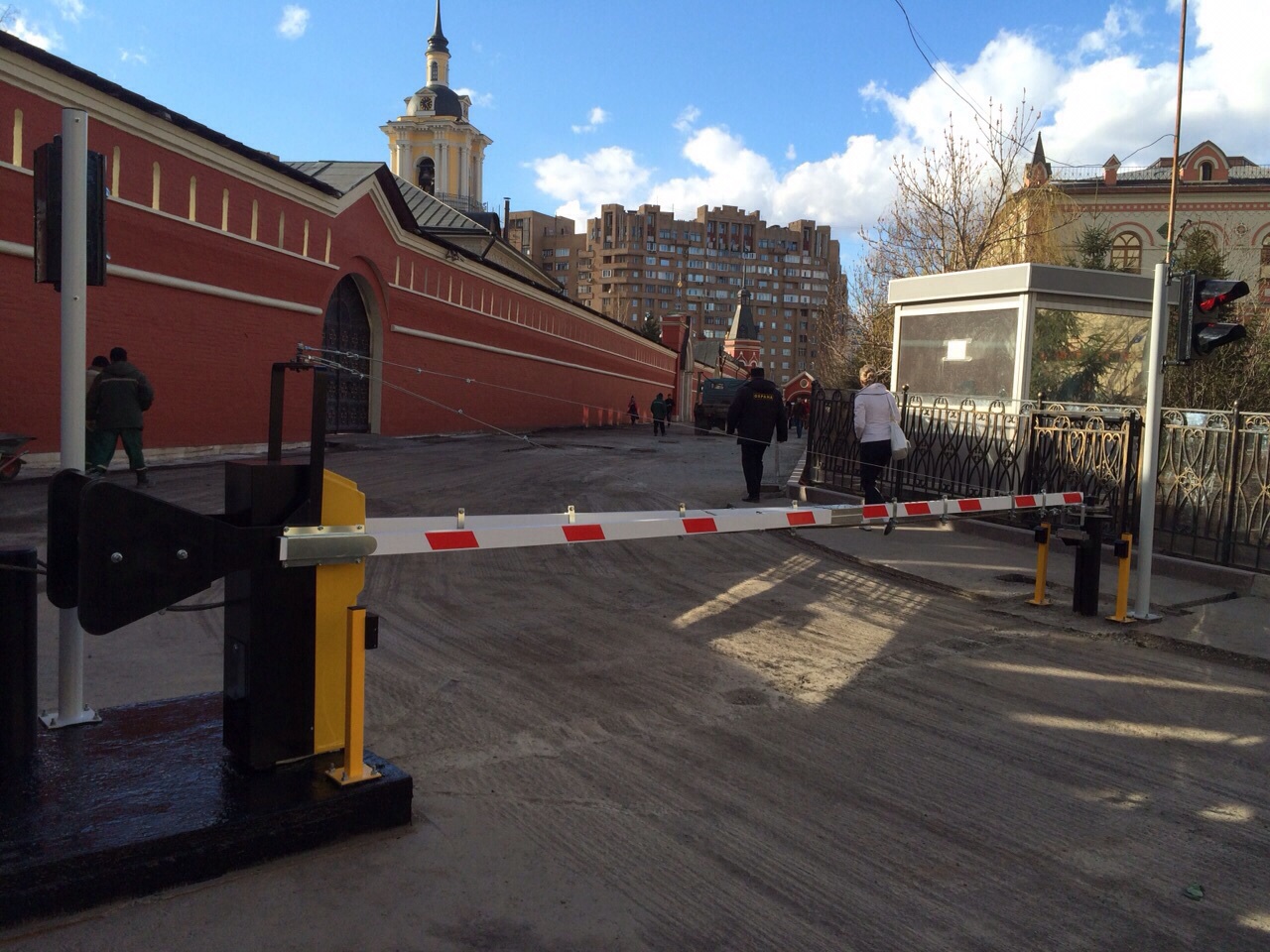

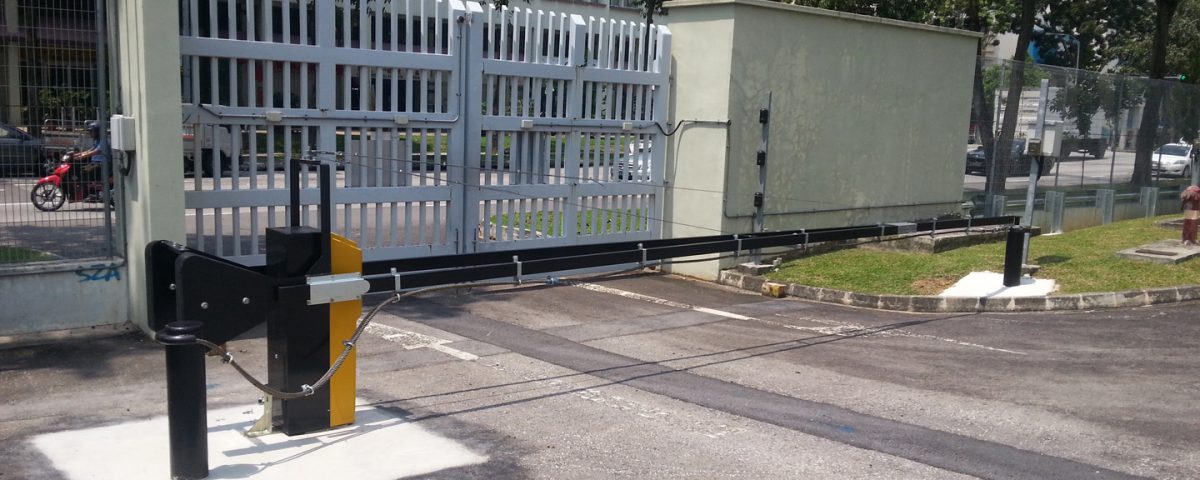

High-Security Arm barrier Model EL-08-1 (M30/K4 – Engineer Certified M30 Equivalent)

With a sturdy, double aluminum arm & steel cable, the EL-08-1 arm barrier provides efficient and reliable protection in high-traffic areas. Besides being built in accordance to the K4 protection level, the EL-08-01 arm barrier features an elegant, classy, and trendy design, which makes it resonate with places that need stylish entrances such as bus stops, airports, and harbor entrances. Featuring an intuitive operating system and top-class access control, this top-notch security solution can extend up to 8 meters, and its arm is tightly locked when closed.

Atop the elegant design and heavy-duty operation, the K-4 engineered EL-08-1 arm barrier comes in electrically and manually operated versions. Its fast action makes it ideal for areas that experience unlimited traffic. This barrier can also integrate other optional accessories to enhance security. These include loop detectors, electromagnetic locks, and traffic lights among many others. The EL-08-1 arm is designed to meet the K4 rating and can stop a 6.8-ton vehicle accelerated at 48kmph. While the EL-08-1 provides evincing strength, it has a very "non-menacing" appearance and therefore blends in perfectly with the surrounding architecture and other environmental features.

Download product data sheet
To download the file, please fill in your details:

    Technial Data EL-08-1 (M30/K4 Engineered)
    OperationElectric/ Manual
    Arm Lengthup to 8m/26ft.
    Arm TypeAluminium double arm+cable
    Steel Cable 1
    Speed8 sec
    ResistanceK4/6.8ton/ 48kph, 13600lbs/30mph
    Operation per hour180
    MCBF3M
    Operation temperatures-25+60C/13+140F
    Optional accessorieselectromagnetic lock 500kg, loop detector, traffic lights, heating
